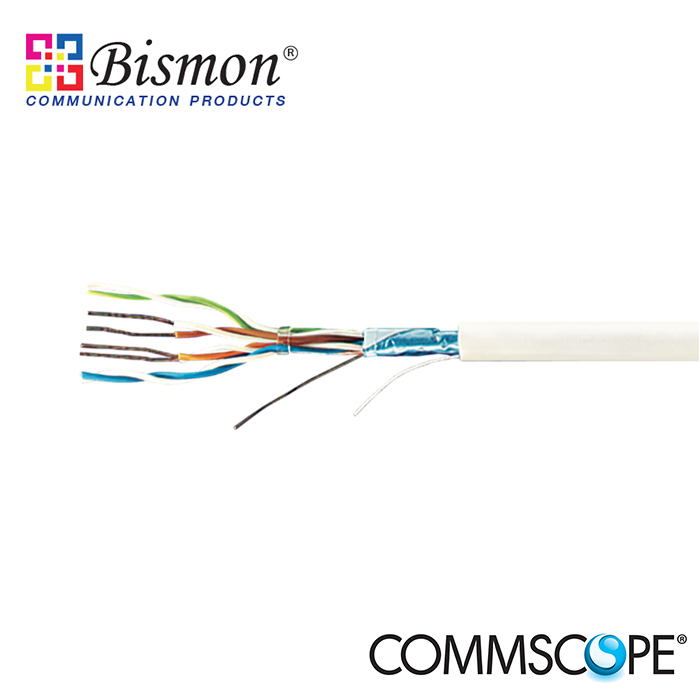

(Commscope) FTP Cable Cat.5e,4 Pair,White,305M/Box

OVERVIEW

AMP NETCONNECT Category 5e cables exceed TIA/EIA-568-B requirements for Category 5e performance. They comply with all of the performance requirements for current and proposed applications such as Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog (broadband, baseband) and digital video and voice. Horizontal cabling shall be 24 AWG, 4-pair UTP, UL/NEC [CM or CMR] rated, PVC jacket. standard Category 5e performance requirements. . Cable shall be UL listed under file number E138034. Horizontal cable shall be

Horizontal cabling shall be 24 AWG,4 Pair CM rate, with a PVC jacket. Cable jacketing shall be lead-free. Cable shall meet the performance requirements listed in the following table in addition to all other standard Category 5e performance requirements.

Copper Cable, category 5e, 4 pair, FTP, PVC, 24 AWG solid, 305 m reel-in-box, white

Specifications

General

ANSI/TIA Category                                                          5e

Cable Component Type                                                 Horizontal

Cable Type                                                                        F/UTP (shielded)

Conductor Type, singles                                                 Solid

Conductors, quantity                                                      8

Jacket Color                                                                      White

Pairs, quantity                                                                   4

Transmission Standards                                                 ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

Dimensions

Cable Length                                                                   304.8 m | 1000 ft

Diameter Over Jacket, nominal                                   6.096 mm | 0.24 in

Conductor Gauge, singles                                             24 AWG

Material Specifications

Conductor Material                                                       Bare copper

Insulation Material                                                        Polyolefin

Jacket Material                                                               PVC

Shield (Tape) Material                                                   Aluminum/Polyester

Environmental Specifications

Packaging Type                                                               Pull box
