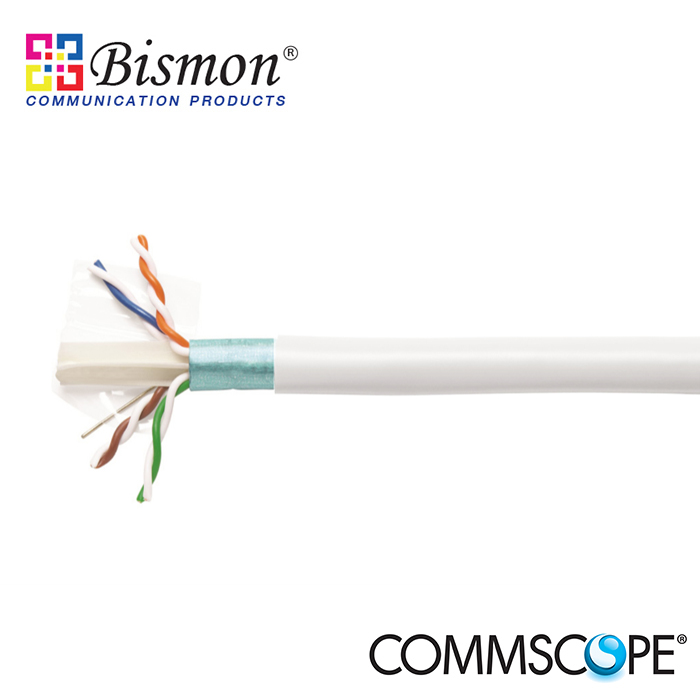

(Commscope) FTP Cable, XG, Cat.6A, 4Prs, 23AWG, Sol, XF, LSH, Wht, 305 MR/RB

OVERVIEW

Category 6A, F/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m)

Specifications

General

ANSI/TIA Category                                            Category 6A

Cable Component Type                                    Horizontal

Cable Type                                                          F/UTP (shielded)

Conductor Type, singles                                   Solid

Conductors, quantity                                         8

Jacket Color                                                        Blue

Note                                                                     All electrical transmission tests include swept frequency measurements

Pairs, quantity                                                    4

Separator Type                                                  Isolator

Transmission Standards                                   ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

Dimensions

Cable Length                                                      304.8 m | 1000 ft

Diameter Over Jacket, nominal                      7.188 mm | 0.283 in

Conductor Gauge, singles                               23 AWG

Drain Wire Gauge                                             26 AWG

Material Specifications

Conductor Material                                         Bare copper

Insulation Material                                          Polyolefin

Jacket Material                                                 Low Smoke Zero Halogen (LSZH)

Shield (Tape) Material                                     Aluminum/Polyester

Material Specifications

Pulling Tension, maximum                            11.34 kg | 25 lb
