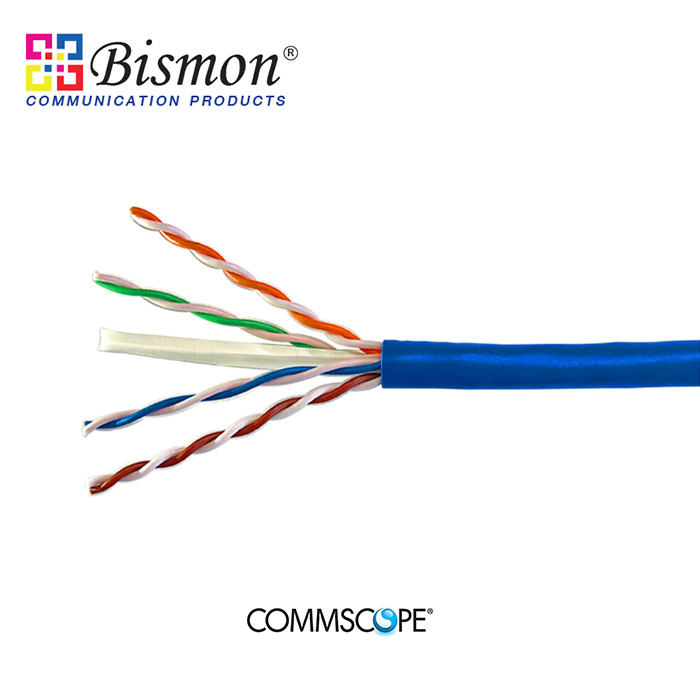

(Commscope) UTP Cable Cat.6 4 pair 23 AWG CMR rate Jacket Blue

OVERVIEW

(AMP) UTP Cable Cat.6 ,4 pair,23AWG,CMR rate Jacket Blue color. Meet Exceeds TIA/EIA-568-B.2-1 Category 6 and ISO 11801 Class E specifications-Web Spacer tomaximize NEXT performance, Exceeds all requirements for Gigabit Ethernet AWG 23 solid conductor Independently verified by Intertek ETL SEMKO testing services UL & cUL Listed (CMR) or LSZH Lead-free jacketing.

Specifications

General

ANSI/TIA Category                                 6

Cable Component Type                        Horizontal

Cable Type                                              U/UTP (unshielded)

Conductor Type, singles                       Solid

Conductors, quantity                           8

Jacket Color                                           Blue

Note                                                        All electrical transmission tests include swept frequency measurements

Pairs, quantity                                       4

Separator Type                                     Isolator

Supported Application                       1000BASE-TX | VoIP | 1000BASE-T | TP-PMD | 100BASE-TX | Token Ring | 155Mbps ATM | 10BASE-T

Transmission Standards                     IEC 61156-5 | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E | CENELEC EN 50288-6-1

Dimensions

Cable Length                                        304.8 m | 1000 ft

Diameter Over Conductor                 1.029 mm | 0.0405 in

Diameter Over Jacket, nominal        5.842 mm | 0.23 in

Jacket Thickness                                  0.559 mm | 0.022 in

Conductor Gauge, singles                  23 AWG
