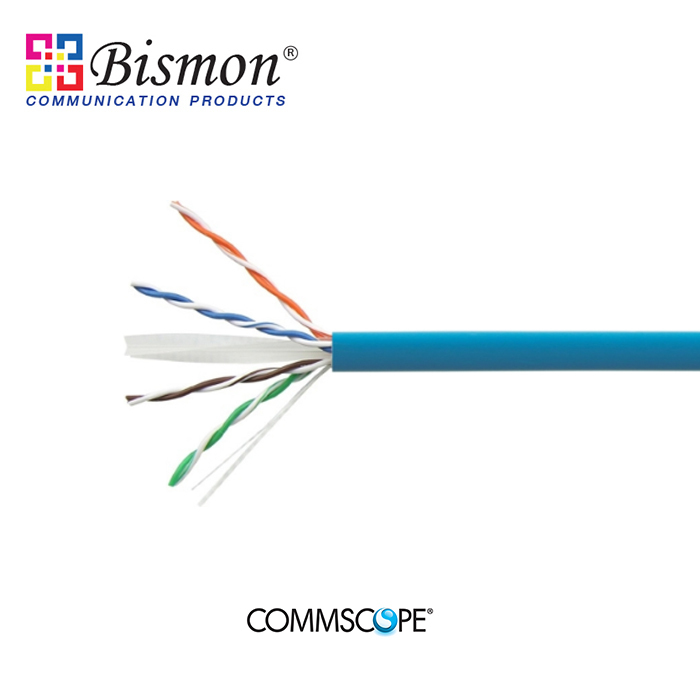

(Commscope) UTP Cable Cat.6 ,4 pair 24 AWG ,CM rate Jacket Blue color

OVERVIEW

(AMP) UTP Cable Cat.6 ,4 pair 24 AWG ,CM rate Jacket Blue color Category 6 (CAT.6) cables exceed TIA/EIA-568-B.2.1 and ISO/IEC 11801:2002 Class E,IEC61156-5,IEC 60332-1-2,EN 50288-6-1 and EN 50173-1 performance requirements, They comply with all of the performance requirements for current and proposed applications such as Gigabit Ethernet,100BASE-TX,token ring,155 Mbps ATM,100 Mbps TP-PMD, ISDN, Analog (Broadband, Baseband) and digital video and analog and digital voice (VoIP).The cable is available in white, grey, and blue, and packaged as reel-in-box.

Specifications

General

ANSI/TIA Category                                                          6

Cable Component Type                                                 Horizontal

Cable Type                                                                       U/UTP (unshielded)

Conductor Type, singles                                                 Solid

Conductors, quantity                                                      8

Jacket Color                                                                      Blue

Pairs, quantity                                                                  4

Transmission Standards                                                 ISO/IEC 11801 Class E | CENELEC EN 50288-6-1 | ANSI/TIA-568-C.2

Dimensions

Cable Length                                                                   304.8 m | 1000 ft

Diameter Over Conductor                                            0.978 mm | 0.0385 in

Diameter Over Jacket, nominal                                   5.588 mm | 0.22 in

Conductor Gauge, singles                                             24 AWG
