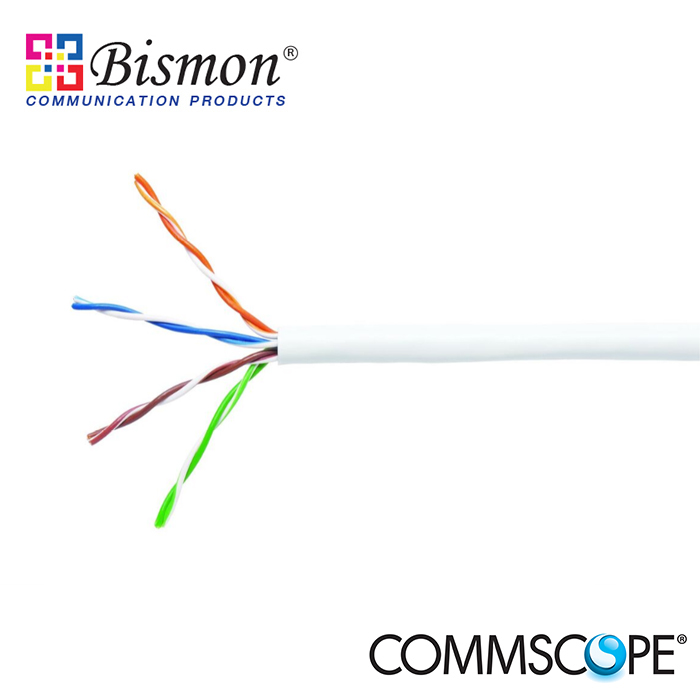

(Commscope)UTP Cat.5e PVC,CM 24 AWG/White, 305MR/PB

OVERVIEW

1427260-2 Copper Cable, Category 5e, 4 pair, U/UTP, 24 AWG, PVC, 1000 ft, white

Specifications

General

ANSI/TIA Category                                                          5e

Cable Component Type                                                 Horizontal

Cable Type                                                                       U/UTP (unshielded)

Conductor Type, singles                                                 Solid

Conductors, quantity                                                      8

Jacket Color                                                                      White

Pairs, quantity                                                                   4

Transmission Standards                                                 ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class D

Dimensions

Cable Length                                                                    304.8 m | 1000 ft

Diameter Over Jacket, nominal                                    4.801 mm | 0.189 in

Conductor Gauge, singles                                             24 AWG

Material Specifications

Conductor Material                                                         Bare copper

Insulation Material                                                          Polyolefin

Jacket Material                                                                 PVC

Environmental Specifications

Operating Temperature                                                 -20 °C to +60 °C (-4 °F to +140 °F)

Environmental Specifications

Packaging Type                                                                 Pull box
