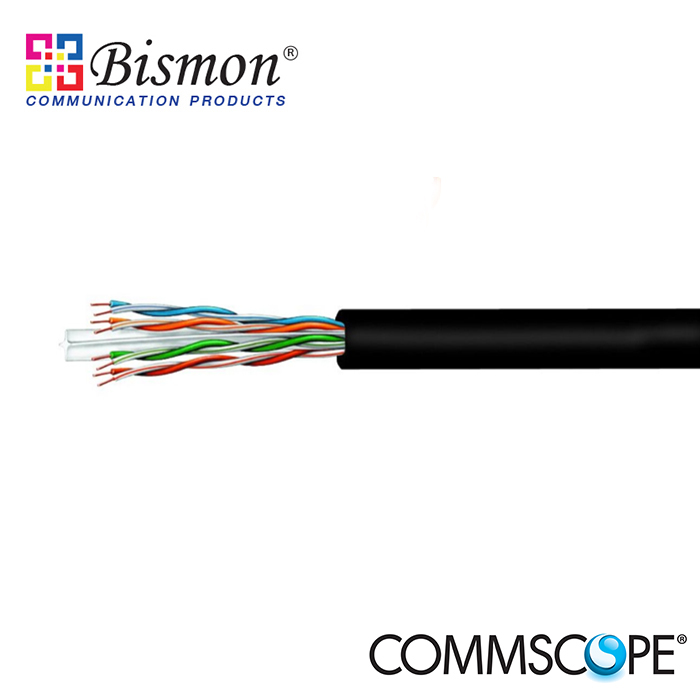

(Commscope) UTP Cat6 outdoor cable, black jacket (ชนิดใช้ภายนอกอาคาร)

OVERVIEW

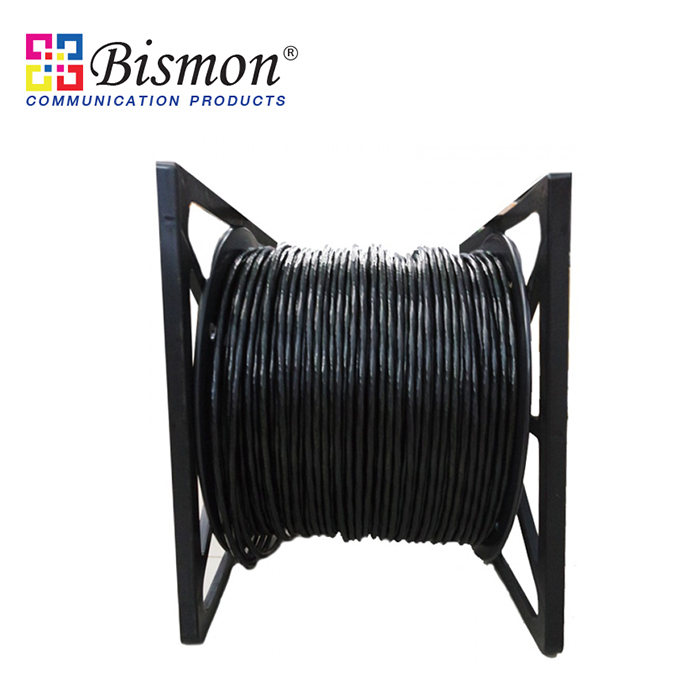

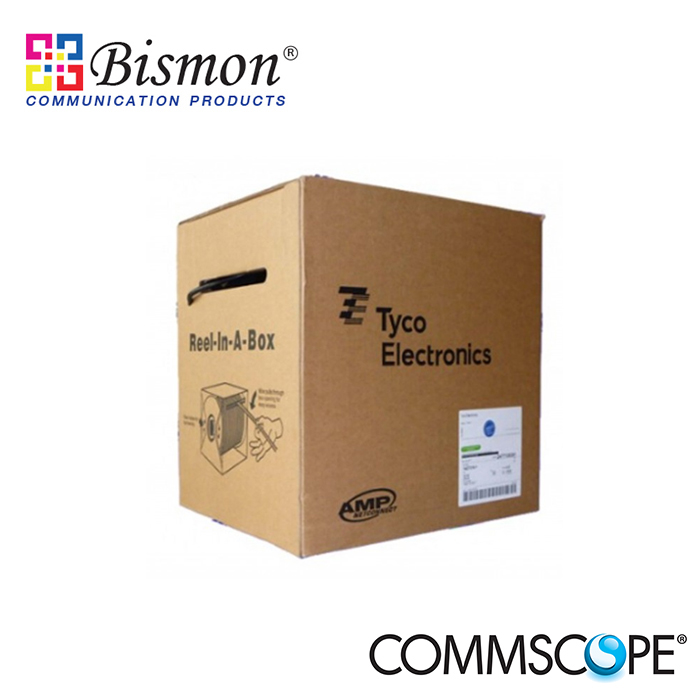

Category 6 U/UTP outdoor cable, black jacket, 4 pair count, 1000 ft (305 m/pull box)

Specifications

General

ANSI/TIA Category                                                      6

Cable Component Type                                             Horizontal

Cable Type                                                                   U/UTP (unshielded)

Conductor Type, singles                                           Solid

Conductors, quantity                                                8

Jacket Color                                                                Black

Pairs, quantity                                                           4

Transmission Standards                                          ANSI/TIA-568.2-D | ISO/IEC 11801 Class E

Dimensions

Cable Length                                                             304.8 m | 1000 ft

Diameter Over Jacket, nominal                            6.299 mm | 0.248 in

Conductor Gauge, singles                                      23 AWG

Material Specifications

Conductor Material                                                Bare copper

Jacket Material                                                        PE

Electrical Specifications

Characteristic Impedance                                     100 ohm

Remote Powering                                                   Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1,

                                                                                   CENELEC EN 50174-2 or TIA TSB-184-A
